New toy - Taig II Model 4500 lathe

I just received my newest tool porn, a Taig II Model 4500 lathe.

These are not light duty watchmaker's lathes, but can hog off respectable amonts of mild steel without problems.

It has a one year history of use and a 10 year history of sitting unused.  It came with a number of add on accessories that will really add to it's potential.  In addition to the normal package it came with a 4 jaw self centering chuck, Jacobs tail chuck that fits over the dead center on the drilling tailpiece.  It also has the milling tower attachment for the cross slide, and some kind of indexint jig attached to it.

Also present is a movable tool rest for wood turning with hand held gouges.

It needs a good cleaning and oiling and remounting to it's base.  i am going to look into a powered lead screw option and replace the cross slide knob as it's handle broke off during shipping, an inexpensive replacement.  There are a number of modifications depicted online showing larger handles that rotate around the mounting bolt that would make it easier to operate.  I will look into those as well as some replacement handwheels from Sherline that have a resettable dial.

This is going to be a help and a distraction to my miniature builds, but oh well....  =)

10 Nov update..

I talked with a Taig dealer who said that the replacement knob will not fit this lathe as they changed it after this one was born.  No problem though, i just ordered a complete cross slide screw assembly that has the new dial and knob for under 25 bucks.  Reasonable for me.  Future posts til it arrives will be cleaning and oiling....

17 Nov update...

The new screw assembly arrived and went in easily.  I went ahead and set the lathe up in a temporary location, my shop being all discombobulated so contractors can wander in and out.

One of the first reasons I got this was to do cans for the store roombox, so I chucked a piece of aluminum up and this is the result;

Both end shoulders turned at same time, then cut off, and wrapped in tape to level out for rechucking.

End result is a convincing can.

I am going to try it again with mild steel to see if it looks more cannish, and a little taller so that the labels I have will fit.  I cannot get to my printer to resize the labels so I guess I am gonna have to play with the new lathe some more...  oh darn....

stay tuned.

Thursday, November 6, 2014

Razor blade saw fabrication

Micro Mark has a ad for some double edge razor blades with saw edges...  While wondering how to slot the fingerboard for the guitar build I lusted after some, just not with the cost and shipping.

I have a large box of single edge razor blades and decided to try converting one or more into some sort of saw blade.

The technique I used turned out to be very successful in creating teeth that cut a very thin kerf.  The blade's body measures 0.008", and the cutting edge is considerably thinner than that.  I clamped the blade in a small clean faced vise and tapped the protective cover flush with the top of the blade body inside.

I then took a set of forceps and a large metal file and holding the blade with the forceps at a 90 degree angle to the file teeth, resting on the file, I struck the top of the blade with a hammer which left regular sharp dents in the cutting edge which work very well as a saw.

The first was a fairly fine file which left fine teeth.

The coarser large file left larger spaced teeth and is the one I am using.

I tried this as well with mixed results, clamping a fence along the direction of the teeth on a rusty file, then dragging the blade across the teeth.  I was able to do this more than once since the teeth registered with the teeth on the file.  I still have better results striking with a hammer though.

I have still to try hammering them at different angles to the file teeth, but will leave that to the masses and/or for another day.

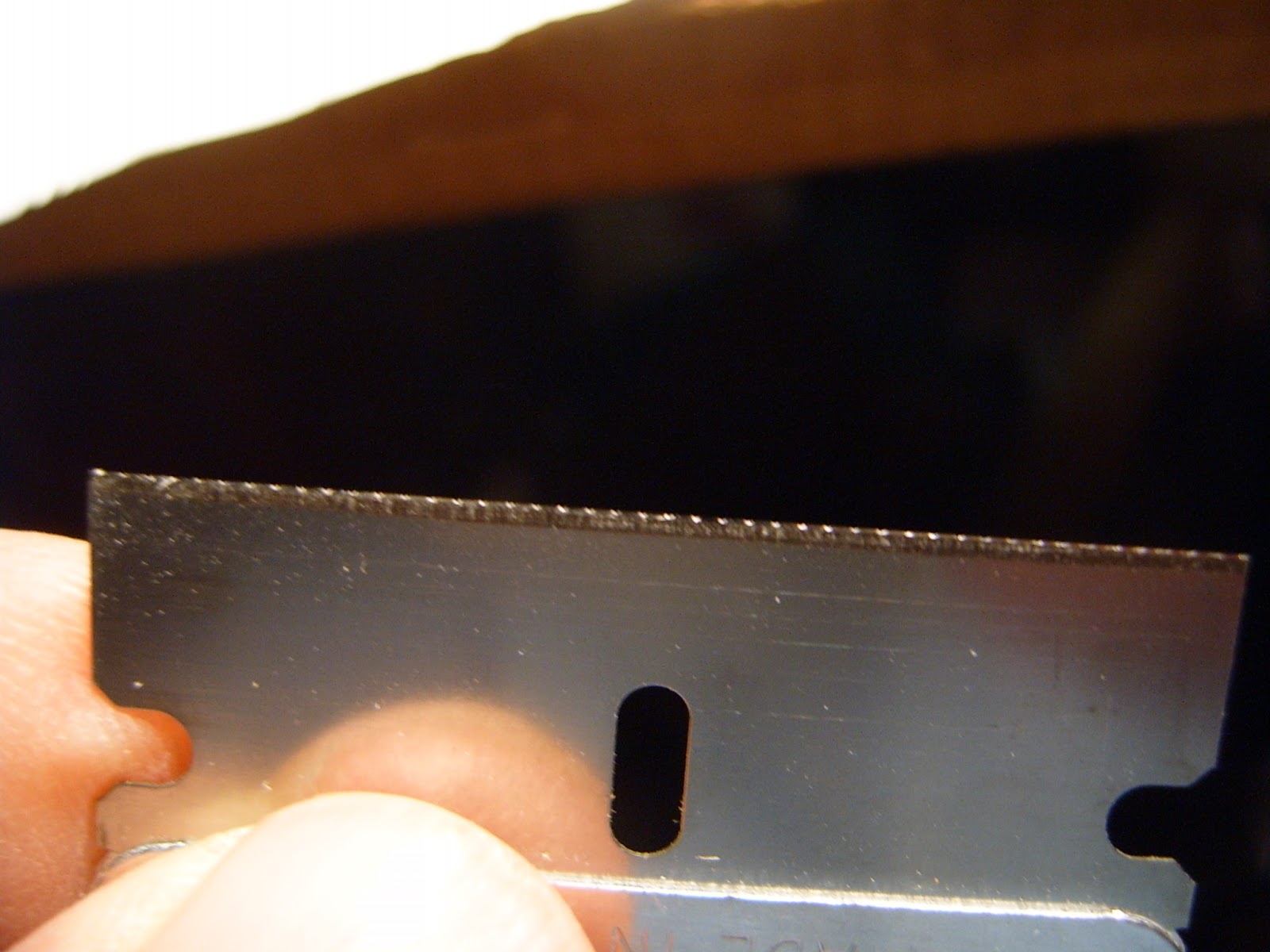

Here is the result on a work copy of a fingerboard for frets.   Nice narrow slots.

Wednesday, October 29, 2014


1/12 Scale 1951 Gibson GA75W Amplifier

Among my music things demanding to be minimized is my 1951 Gibson GA75W guitar amplifier shown in the first picture.  The guitar and horn are for some far off future project.  This picture was taken onstage at the Grump Brothers Band World Tour sometime in the past.

As usual with my prototypes I started the photo documentation late, but will try to keep up and let you know how I got from A to Z.

The first steps involved building a case out of balsa wood which was then covered in thinnish brown paper.

This brought me to the speaker...  The original is a Jensen 15 inch field coil monster.  I debated on building press molds and squashing one out of aluminum, something I may yet do at some point in the distant future.  The rear view is not of mine, but is eerily similar.

I went to Goodwill to see what speaker shaped and sized objects de castoff I could find and settled on a dead radio control monster truck that had deep rims on the back tires.

After removing the tire I had this to deal with.

I felt sure that there was a speaker frame somewhere inside this rather substantial rim, so off to the bandsaw I went.

My usual trim everything away that does not look like whatever I need commenced.
Thankfully the back side was not chromed and was able to be sanded, ground and trimmed into the basis of a speaker frame.

Glue on the paper cone will not be seen due to the grill cloth.

A coat of acrylic "Jensen blue" on the frame after altering the frame hole shape, and gluing on a Sculpy magnet cover followed by a blast of clear lacquer to give it some shine gives this a fairly accurate representation of a speaker.  I need to make the field coil still and the chassis with the tube mounts, as well as cobble up the panel, but it is looking better and better with time.

The full size has some cording down the front and wrapping around the top to the back.  I glued some brown thread in place prior to painting

Small light bulbs with the base sprayed black will be mounted on the chassis along with some small cans and a transformer.

Now that I have the rectifier and power tubes sorted out I needed to think about the chassis to mount em in.  I tried a couple pieces of balsa, but no matter what I did in terms of finishing it looked like wood.  I finally decided on aluminum as shown below.

I realized after this that there are four small tubes alongside the three larger ones.  I will make a new chassis panel and post that here when done.

The next thing I tackled was the field core speaker driver transformer thing that hangs off the side of the speaker in the rear view picture earlier.  I tried carving it out of wood, and grinding it out of aluminum, neither of which were satisfactory.  Back to the bending brake and aluminum sheet which resulted in this frame.  It was formed like the full size one, by making a channel piece, filing some 90 degree areas in the sides to bend the sides around, then wrapped some masking tape around a 1/16 balsa core which was inserted into the frame and to me is quite convincing.  Adding appropriate wires and mounting it to the frame complete the illusion.  I will admit I had to remake the transformer metal surround after I broke off a mounting tab.

The above shows the new chassis panel also.

I reconed the speaker since the first attempt had glue all over and did not really fit well.  After mounting it in the frame I added one detail which sells it as a speaker, but will be totally hidden once it is mounted, the center domed coil cover.  It is also deep enough that the profile picture looks like the cone extends back to the magnet.

The box and panel were masked and two coats of satin paint were applied with light sanding between coats and are now doing a couple days drying (ocean push just drove humidity up here in the great Pacific NW).

 I will take that time to complete the speaker, add wires where needed, and contemplate the panel which will need a red jewel light, toggle switch, fuse holder cap, four chicken head knobs and five input jacks.  No problem.........   oh yeah...  some distinguishing graphics, including a brass logo for the front.....  and oh yeah, power cord, feet and leather handle....

stay tuned....

-------------   time passes

I started the day out with a hard wax rod that I ground a chicken head recess into and pressed out a bunch of Sculpy knobs...

Unfortunately, I was unable to remove them intact after cooking them, or by slicing them off prior to cooking,  Back to the drawing board...

I turned knobs out of rosewood leaving little pegs on the back to mount with.  I turned a toggle switch handle from aluminum, a fuse cap from black plastic and photo'd shrunk and printed a panel.

I painted the preamp tubes black, and mounted all the tubes to the chassis.

Dry fitting it all together is quite convincing.  I still need to do the handle and it's mounts and glue one end of the power cord onto the back side of the chassis and make a plug for it.  Four feet should complete the build.  Not sure if I am going to try the logo or not.

More as it is completed.

June 22 update -

It is dry fitted and basically complete at this point, requiring final adhesive permanence and minor touch ups  and/or aging.  It is after all a 60 year old amplifier and they all look rather road worn.  The logo may or may not appear at some future date and will be photoed at that time.

I have to mount the feet, but most that are out there are and have been footless for many years so that may pass.

Enjoy the fruits..

For this post I think this is complete.  If there are any drastic changes in the future I will addendum them.  Thanks for watching.  It has been fun, see you next project!

July 12 update...

The Logo was still missing, and although many out there have it gone or partially gone, it really needs it...   so...    In order to do it in brass shim stock I shrank and printed a pic of the logo onto brass and tried to cut it out under serious magnification.  Epic fail.. if I ever want to use brass I will have to learn how to do photo etching.

I shrank the pic, matched the brown and printed it on paper instead.  Close trimming and some Mod Podge gave me a reasonable appearing logo.

Embossed some screws and voila...

At this point I think it is safe to say that it is complete.
